Particle Size Distribution: Controlling PSD in Ceramic Bodies
Particle size distribution is one of the main variables that controls how a ceramic body behaves from forming through firing. It can affect packing, permeability, burnout response, sintering rate and the final microstructure. A single number such as median particle size does not capture this behavior. What matters is how coarse and fine particles are distributed relative to each other and how they interact during compaction, drying and firing.
In practice, many ceramic defects trace back to particle size distribution rather than chemistry. Issues such as lamination, bloating, uneven shrinkage, or inconsistent fired density often appear even when raw material chemistry has not changed. For that reason, particle size distribution needs to be treated as a control variable.
Particle Size Distribution in Ceramic Systems
Particle size distribution (PSD) is typically described using cumulative values such as d10, d50 and d90, along with span and curve shape. These metrics indicate how much fine material is present, where the median sits and whether a coarse tail exists.
- Narrow distributions tend to pack in a predictable way but can limit achievable green density.
- Broad/bimodal distributions allow fines to fill voids between larger particles which increases green density but reduces permeability.
- Multimodal distributions are often used in refractories and porous ceramics where gas flow, thermal shock behavior or crack deflection are part of the design target.
PSD should never be considered alone. Particle shape and surface area play a significant role. Angular particles raise interparticle friction during forming, while high surface area fines increase binder demand and influence burnout behavior.
Particle Size Distribution Measurement & Characterization

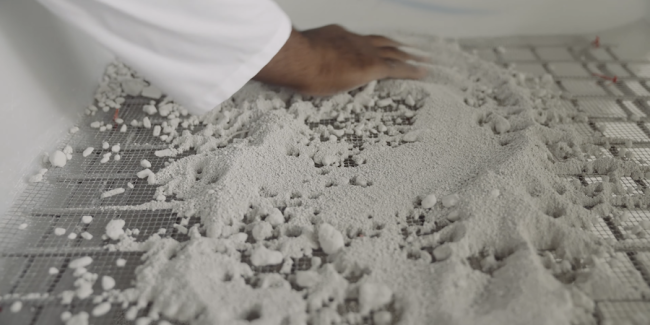

The choice of measurement method depends on size range and material type. Sieve analysis is still widely used for coarse grogs, aggregates and refractory fillers above roughly 45 µm. Finer powders are commonly evaluated using laser diffraction particle analysis or sedimentation based methods. In many plants, laser diffraction is used to compare lots over time and to detect shifts in fines content or coarse tails rather than to predict forming or firing behavior by itself.
Measurement quality depends heavily on how the sample is prepared. Poor sampling can hide lot-to-lot variation. Inadequate dispersion can make a powder appear coarser than it really is, while overly aggressive dispersion can break weak agglomerates that are present during actual toll processing. Both cases lead to misleading conclusions.
Interpreting a PSD curve also requires context. Two ceramic materials can share a similar d50 while behaving very differently if one distribution is narrow and unimodal and the other is broad / bimodal. Particle shape adds another layer of complexity. Angular or high-aspect ratio particles often behave as larger effective sizes during packing and forming than their reported equivalent spherical diameter would suggest.
PSD Effects on Green Body Packing & Density
As fines content increases, several effects can occur at the same time:
- Green density increases as fines fill interstitial voids
- Permeability decreases, limiting gas flow through the body
- Thick sections become more sensitive to burnout constraints
- Pressed bodies require higher compaction pressure and show increased die wall friction
- Extruded bodies show higher torque and a narrower moisture window
These effects are tightly linked. Increasing fines can improve density but often raises risk during burnout and forming. The right balance depends on forming method, section thickness and firing schedule.
Particle Size Distribution & Binder Burnout Behavior
During binder decomposition, particle size distribution controls how easily gases can move through the body. Systems with excessive fines or very dense packing tend to form closed porosity early in the firing cycle, which restricts gas release.
Burnout behavior shifts as fines increase. Bodies rich in sub 5 µm particles often need slower heating rates through roughly 200-500 °C to avoid pressure buildup, blistering or lamination. Coarser distributions can tolerate faster schedules but usually give up some green strength. This tradeoff is easy to overlook (and often shows up only after firing problems appear).
PSD Control During Raw Material Processing
Particle size distribution is established and modified during crushing, milling and classification. Different milling routes create different distributions.
- Ball milling produces broad distributions through impact and attrition.
- Attrition milling generates fines quickly and raises surface area.
- Jet milling produces tighter distributions but is typically limited to finer technical powders.
- Wet milling tends to give uniform size reduction but increases the chance of reagglomeration during drying.
- Dry milling can maintain sharper cutoffs but may generate excess fines through abrasion.
Classification steps such as screening or air separation are often needed to stabilize distributions in production. Nominal mesh designations alone are not sufficient. Materials sold as fine grades can still contain small amounts of oversize particles that drive surface defects, lamination or localized shrinkage if they are not managed.
Recycled and repurposed materials add another layer of variability. Differences in hardness, prior firing history and contamination make PSD drift more likely, which is why tighter incoming controls and frequent checks are usually required.
PSD Impacts on Sintering & Fired Microstructure
Particle size distribution has a direct effect on sintering onset and densification rate. Fine particles accelerate diffusion and neck formation, which lowers initial sintering temperature but increases total shrinkage.
Broad distributions promote uneven sintering. Fines densify early while coarse particles lag, which affects pore shape and grain growth. Too many fines can cause early pore closure and exaggerated grain growth. Coarse-dominated systems may retain open porosity even at peak temperature. Managing PSD allows fired density and pore structure to be adjusted without changing chemistry.
Application-Specific PSD Targets
Dense structural and technical ceramics often use controlled bimodal distributions to balance density and burnout behavior. Porous ceramics used for filtration or catalyst supports rely on controlled coarse fractions to maintain interconnected porosity after firing.
Refractories commonly use multimodal systems that combine fines, grog and intermediate fractions to manage thermal expansion, slag penetration and thermal shock response. Extruded and granulated bodies need distributions that remain workable during forming and stable during handling.
Spray-dried granules add a second size scale that should be considered when interpreting powder PSD data, especially when correlating lab measurements with forming behavior.
Guidelines for Controlling Particle Size Distribution
Control starts with setting PSD targets that match forming method, section thickness and firing conditions. Specifications should address not only median size but also span and fines content. Routine monitoring helps catch drift early:
- Watch fines percentage and coarse tail movement
- Link PSD shifts to changes in forming pressure, torque, or moisture response
- Recheck PSD when defects such as lamination, bloating, or uneven shrinkage appear
- Review PSD together with binder loading and firing adjustments
When corrections are needed, changes to milling time, fines balance or classification are often more effective than altering chemistry.
Contact IntoCeramics for Toll Manufacturing Support
IntoCeramics works with ceramics manufacturers to diagnose particle size distribution issues, adjust formulations and align raw material processing with forming and firing constraints. This work often combines plant data with particle size distribution measurements, including laser diffraction where it makes sense, to support root-cause analysis, incoming material comparisons and verification of process changes.
Contact ourceramic engineering team to discuss particle size distribution challenges in your toll manufacturing process.
